SPECIAL FEATURES

TYP 1 standard

Choice of sheath material: stainless steel
Ø ±0,02-0,06mm

TYP 2 ceramic

Choice of sheath material: stainless steel
Ø ±0,02-0,06mm

TYP 3 thread

Choice of sheath material: stainless steel
Ø ±0,02-0,06mm

TYP 4 teflon

Choice of sheath material: stainless steel
Ø ±0,02-0,06mm

TYP 5 monopole

Choice of sheath material: stainless steel
Ø ±0,02-0,06mm

TYP 6 standard

Choice of sheath material: stainless steel
Ø ±0,02-0,06mm

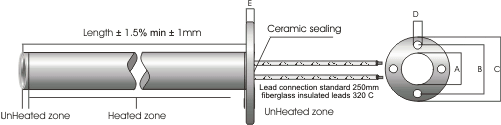

TYP 7 WASHER

Choice of sheath material: stainless steel
Ø ±0,02-0,06mm

  1/4'' 5/16'' 3/8'' 1/2'' 5/8'' 3/4'' 1''
A 6,5 8 10 12,5 16 20 25 6,35 7,93 9,52 12,7 15,87 19,05 25,40
B 18 18 27 27 33 33 41 18 18 27 27 33 33 41
C 13 13 20 20 25,6 25,6 33 13 13 20 20 25,6 25,6 33
D 3,2 3,2 3,2 3,2 4,2 4,2 5,2 3,2 3,2 3,2 3 4,2 4,2 5,2
E 1-1,2 1-1,2 1-1,2 1,2-1,5 1,2-1,5 1,5-2 1,5-2 1-1,2 1-1,2 1-1,2 1,2-1,5 1,2-1,5 1,5-2 1,5-2

TYP 8 cilinder

Choice of sheath material: stainless steel
Ø ±0,02-0,06mm

milimetros pulgadas B A
6,5 1/4'' 10 6,35
8 5/16'' 11 7,93
10 3/8'' 12 9,52
12,5 1/2'' 13 12,5
16 5/8'' 16 15,87
20 3/4'' 19 19

TYP 9 nipple

Choice of sheath material: stainless steel
Ø ±0,02-0,06mm

  1/4'' 5/16'' 3/8'' 1/2'' 5/8'' 3/4''
A 6,5 8 10 12,5 16 20 6,35 7,93 9,52 12,7 15,87 19,05
B 10 10 12 12 14 14 10 10 12 12 14 14
C 4 4 4 4 4 4 4 4 4 4 4 4
D 12 14 17 19 24 27 12 14 17 19 24 27
ROSCA M-10 M-12 M-14 M-16 M-20 M-26 1/8'' 1/4'' 1/4'' 3/8'' 1/2'' 3/4''

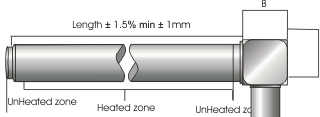

TYP 10 squared

Choice of sheath material: stainless steel
Ø ±0,02-0,06mm

milimetros pulgadas B
6,5 1/4'' 8
8 5/16'' 10
10 3/8'' 12
12,5 1/2'' 15
16 5/8'' 18
20 3/4'' 25

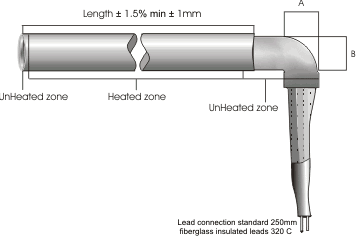

TYP 11 elbow

Choice of sheath material: stainless steel
Ø ±0,02-0,06mm

milimetros pulgadas A B
6,5 1/4'' 12 11
8 5/16'' 14 11
10 3/8'' 17 14
12,5 1/2'' 19 16
16 5/8'' 24 21
20 3/4'' 28 25

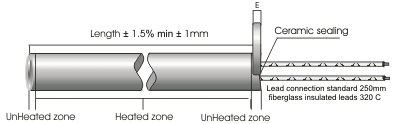

TYP 12 WASHER

Choice of sheath material: stainless steel
Ø ±0,02-0,06mm

A 6,5 8 9,5 10 12 18
B 9,5 11 13 14 15 17
C 6,5 9 9 10 11 13
D 3,2 4,2 4,2 5,2 5,2 6,2
E 1-1,2 1-1,2 1-1,2 1-1,2 1-1,5
